Finlay Pre-Screen (With Frame)

  • 19 days
  • Armagh
P.O.A.

Finance Available

Apply for Finance

Key Specifications

  • Make Other
  • Machinery Type Other

Details

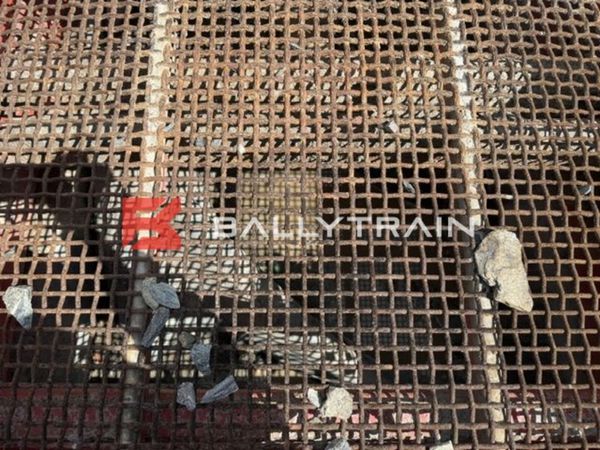

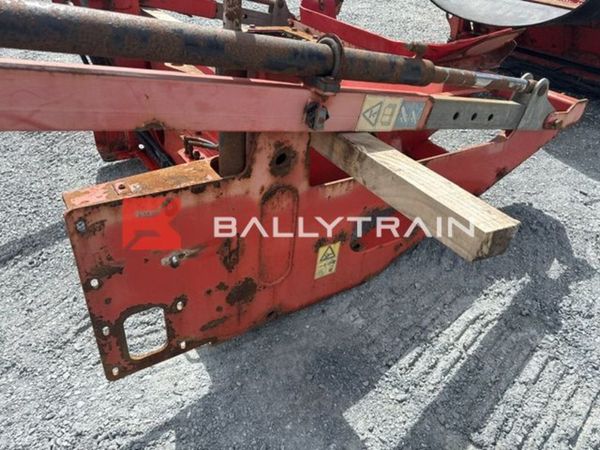

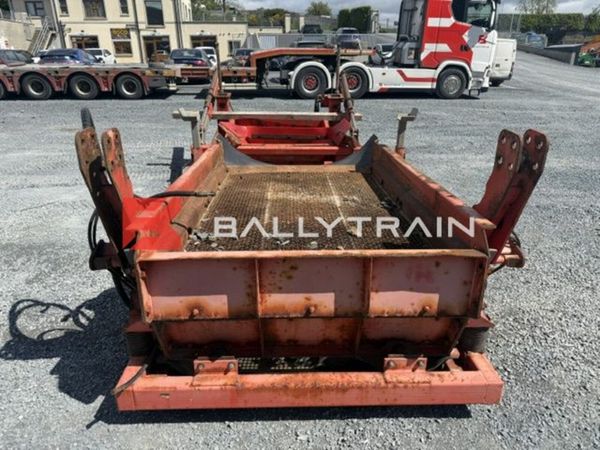

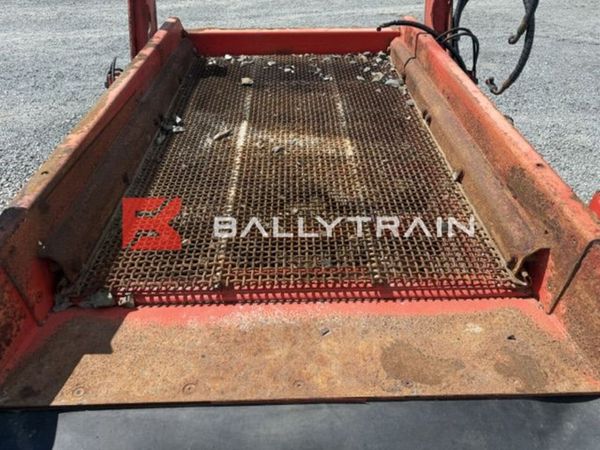

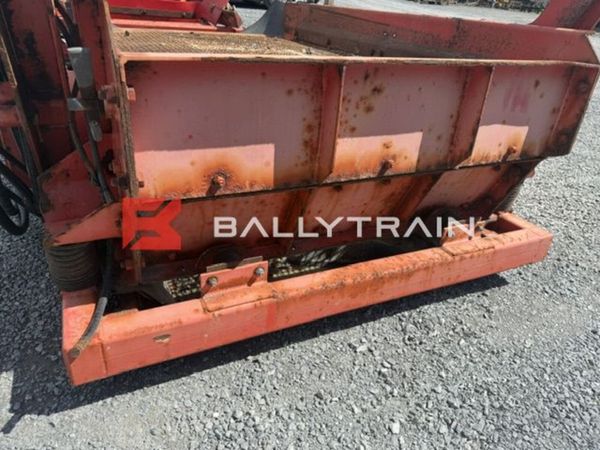

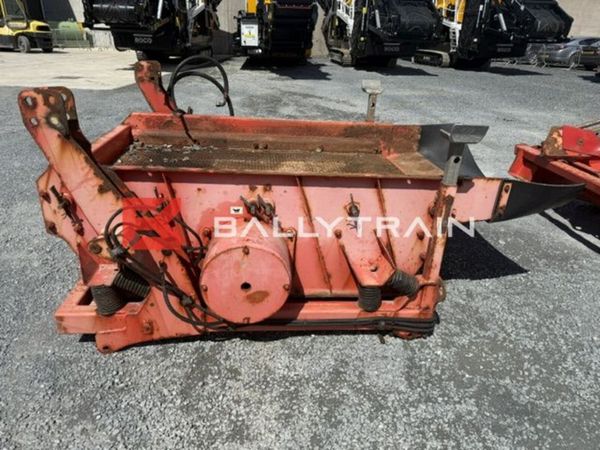

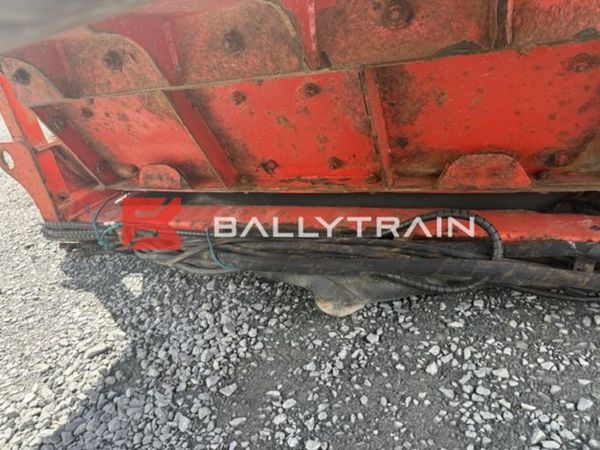

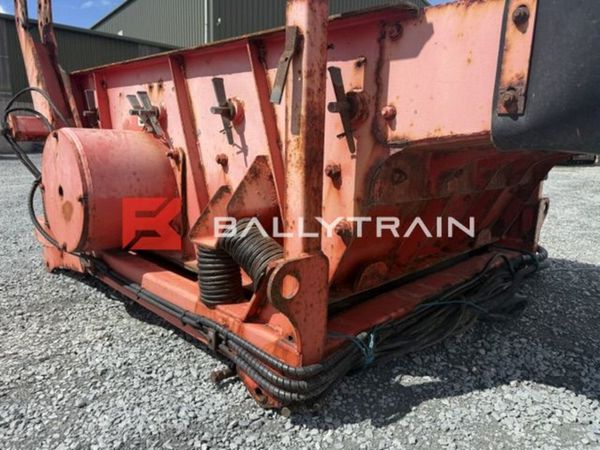

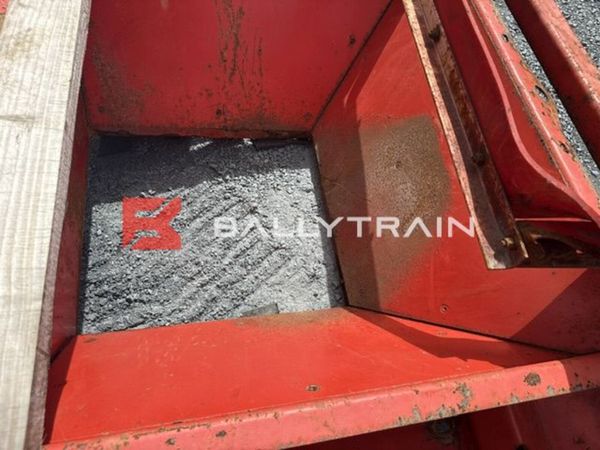

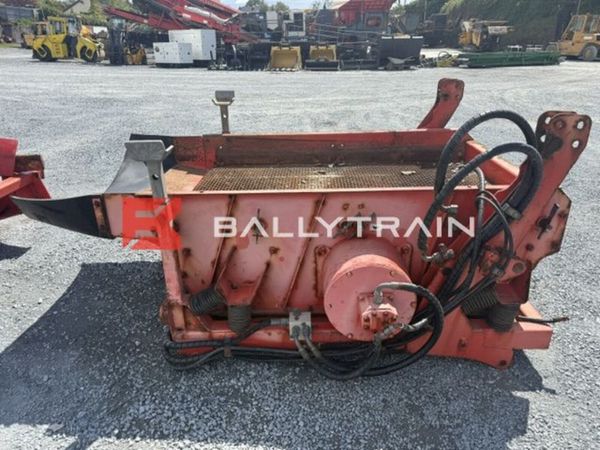

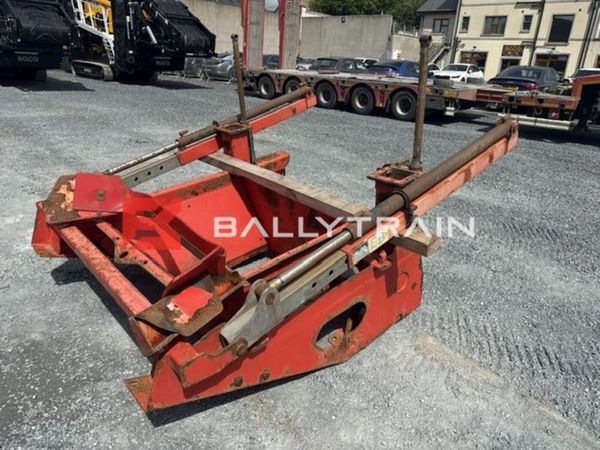

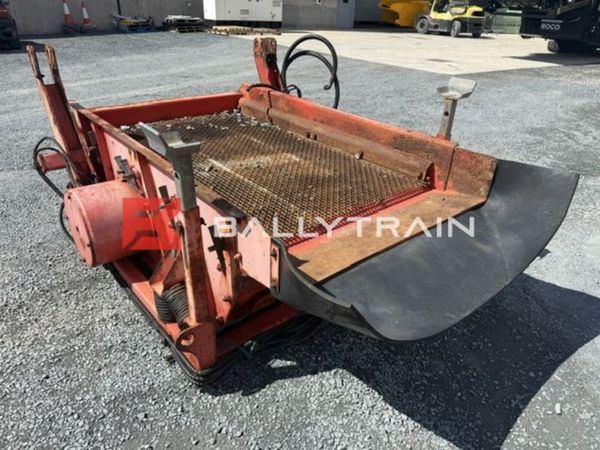

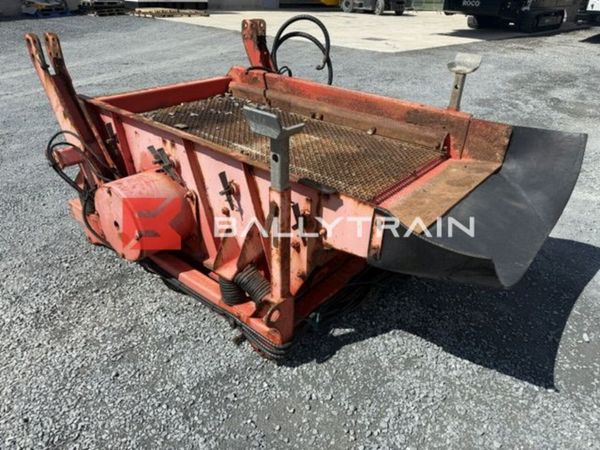

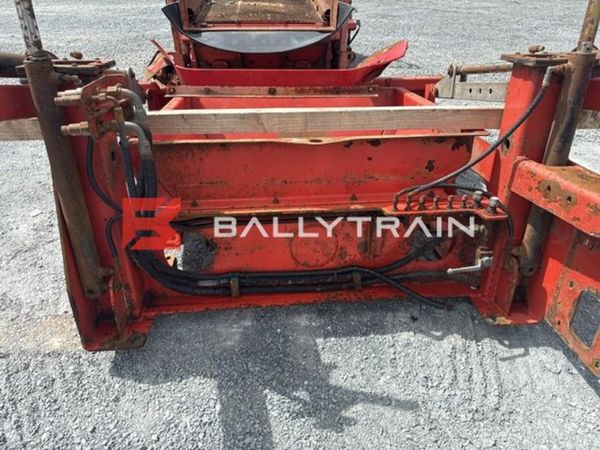

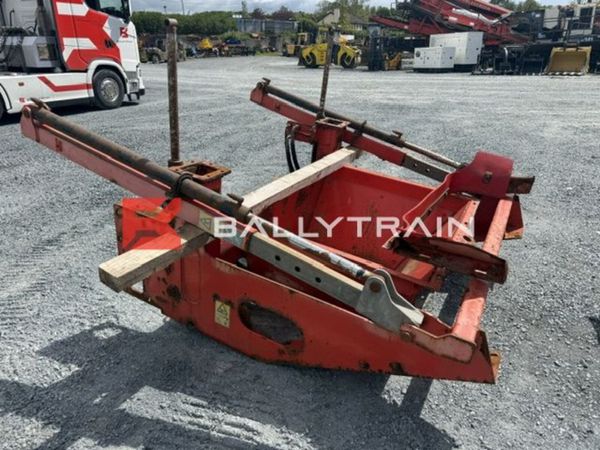

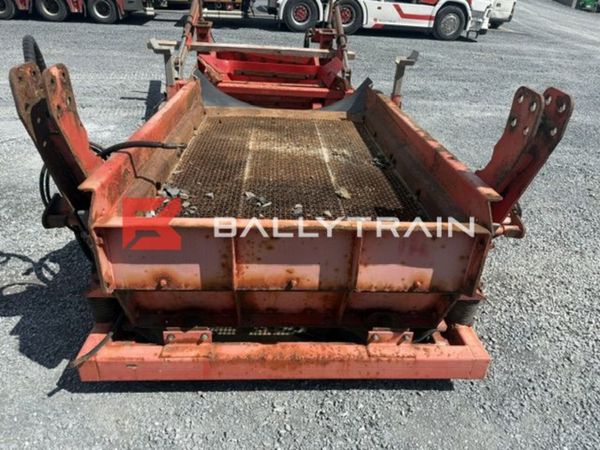

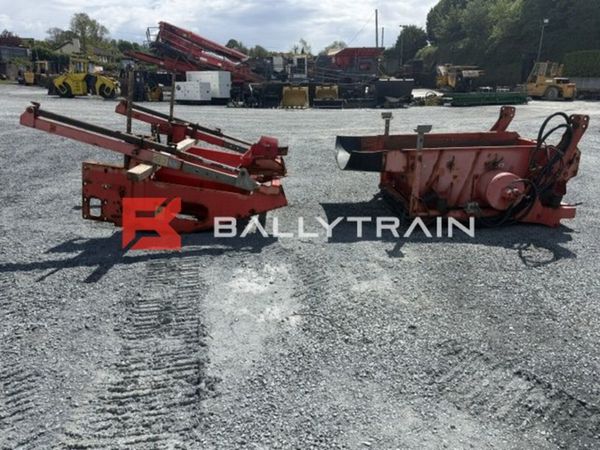

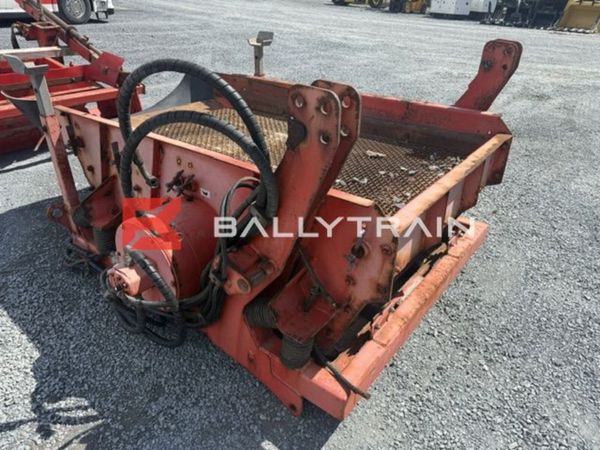

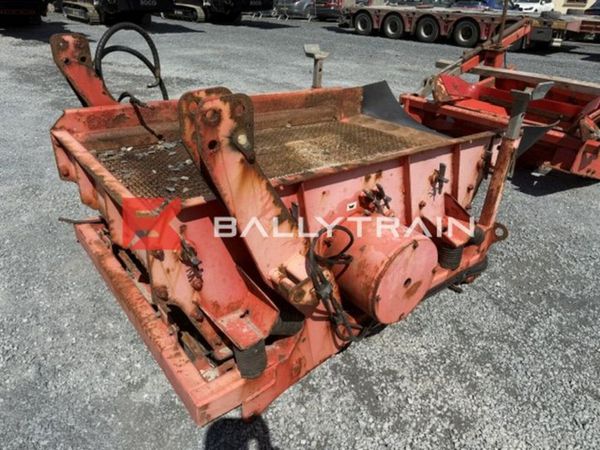

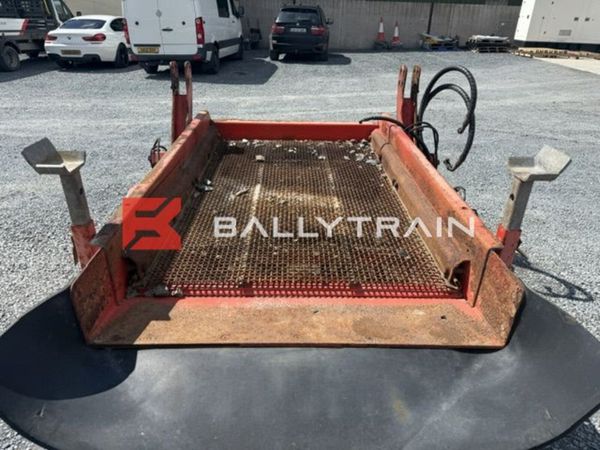

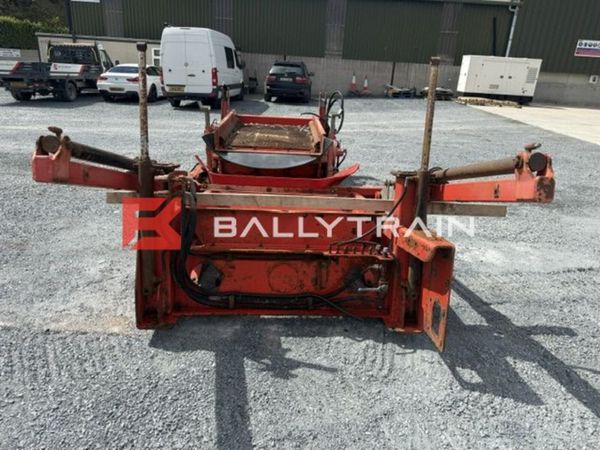

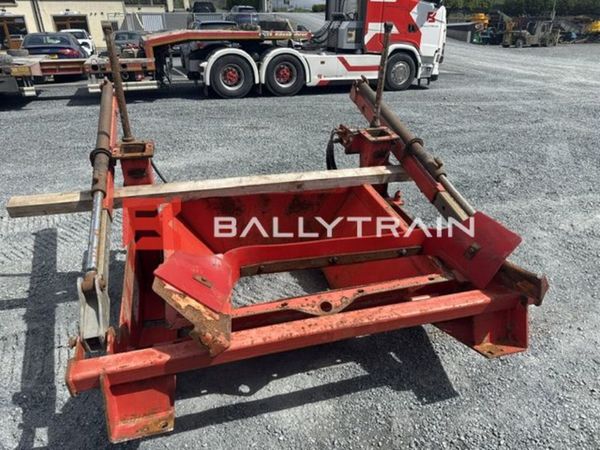

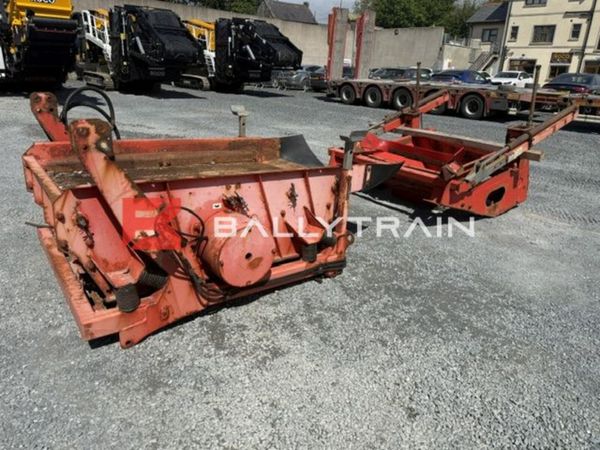

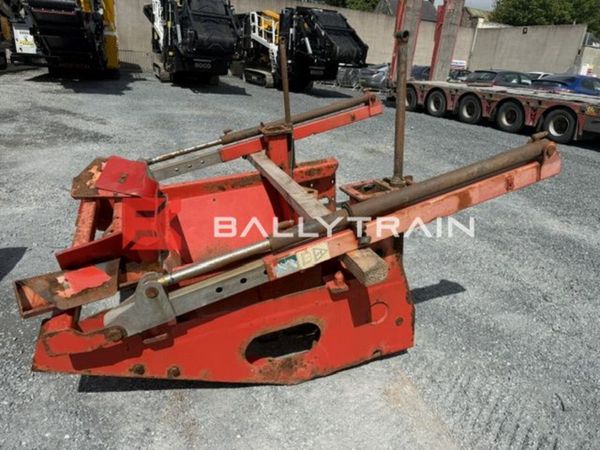

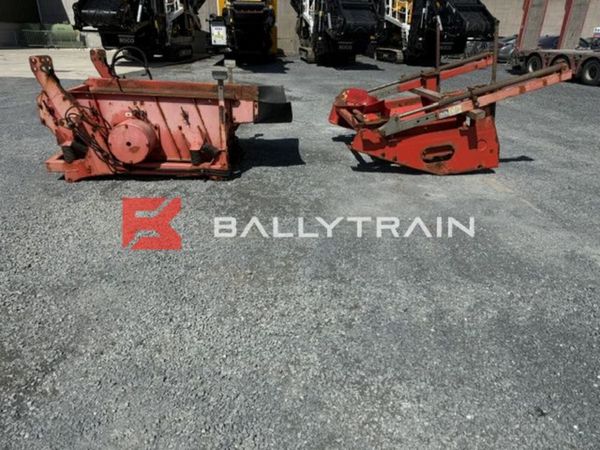

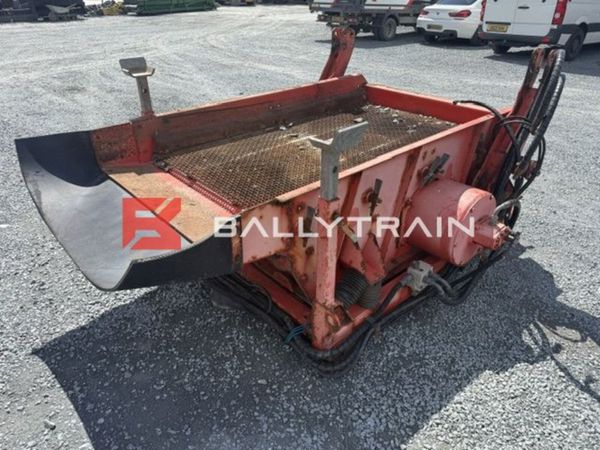

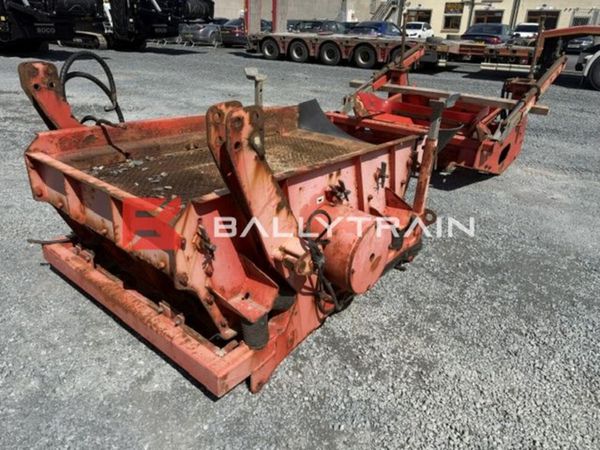

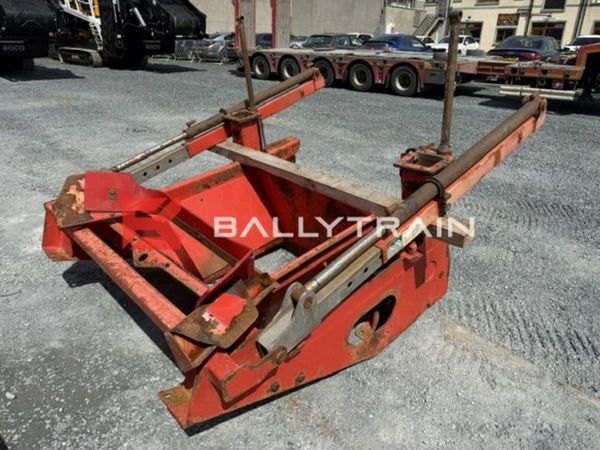

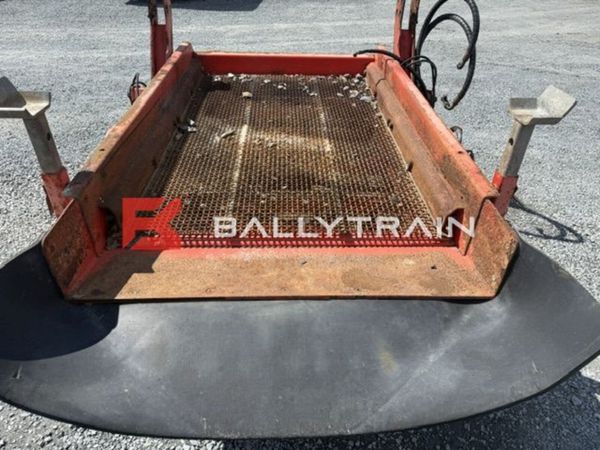

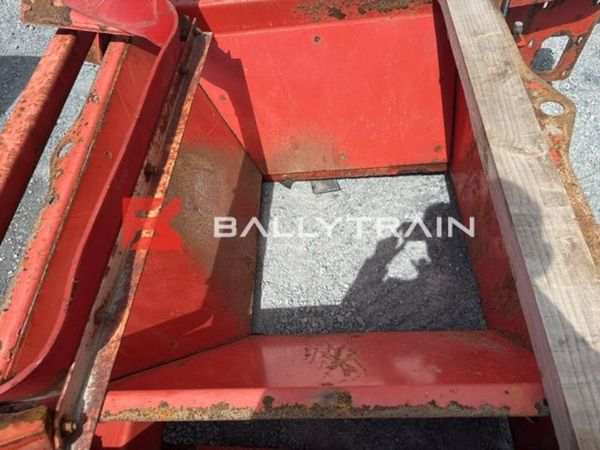

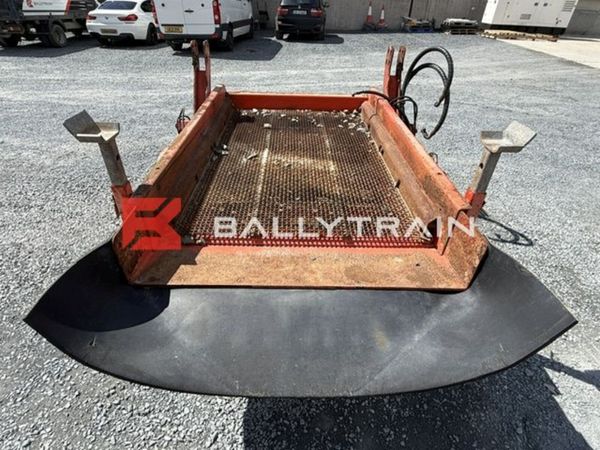

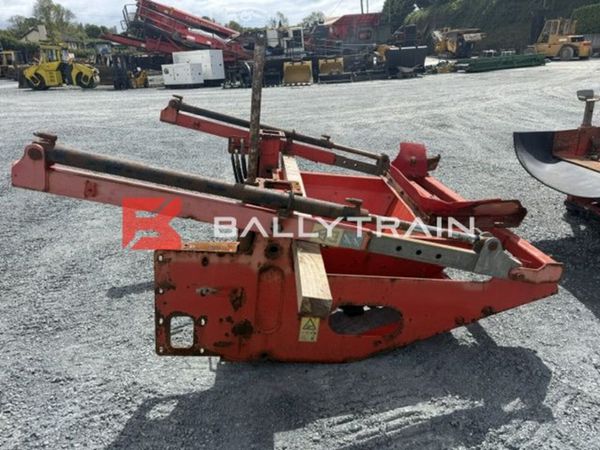

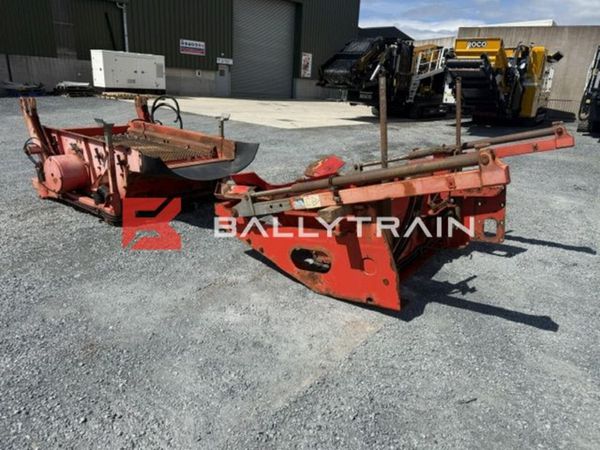

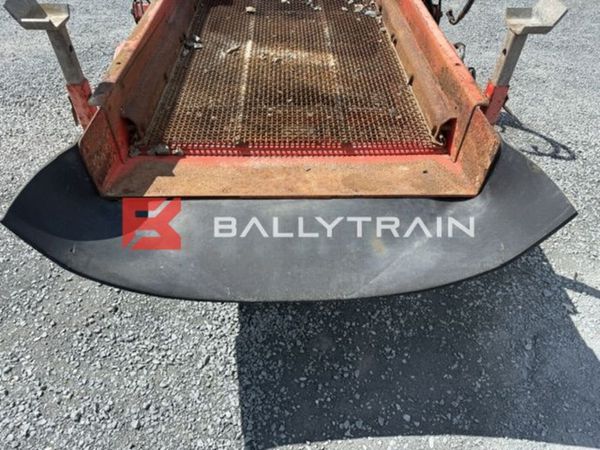

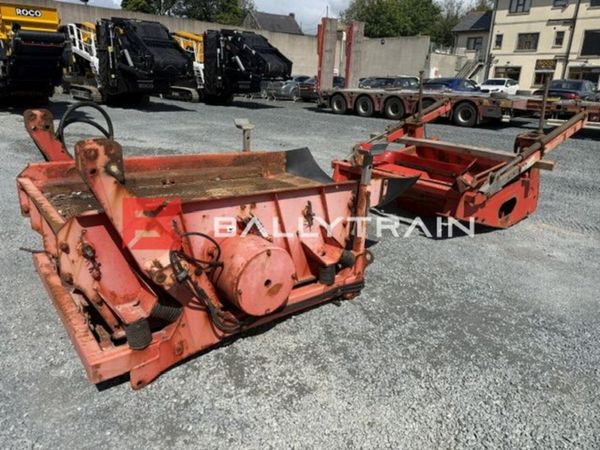

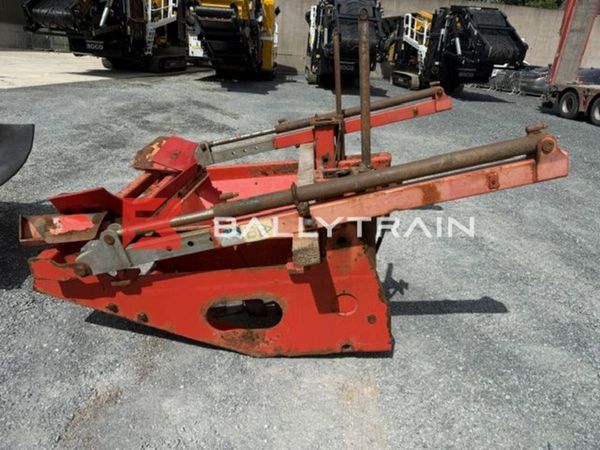

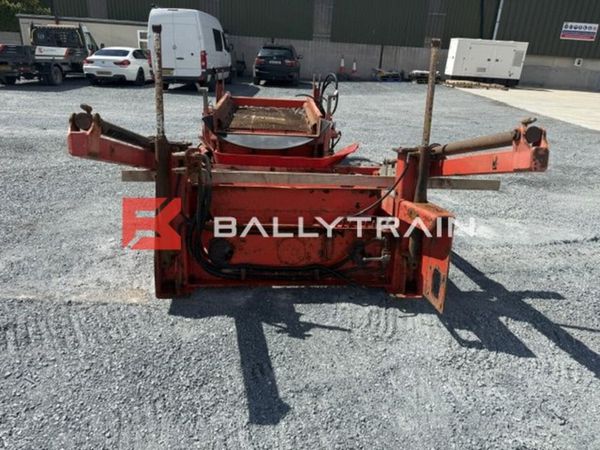

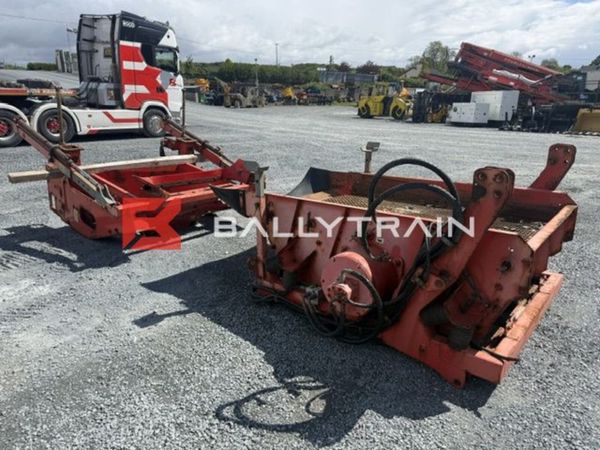

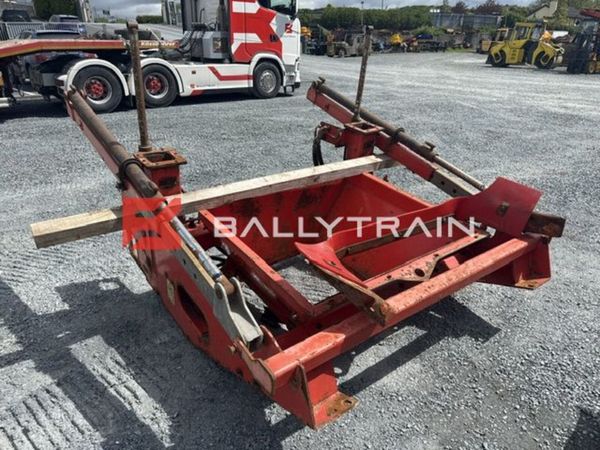

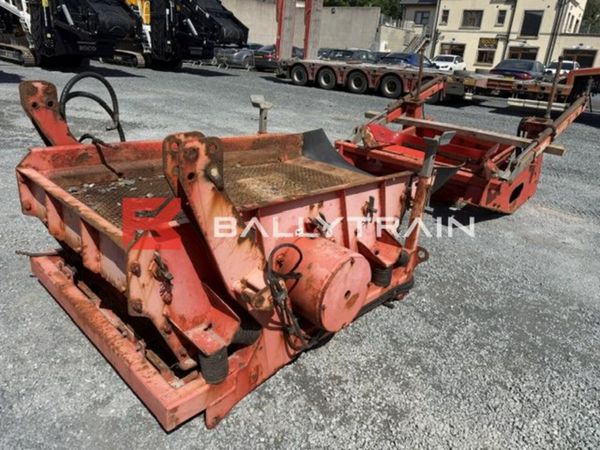

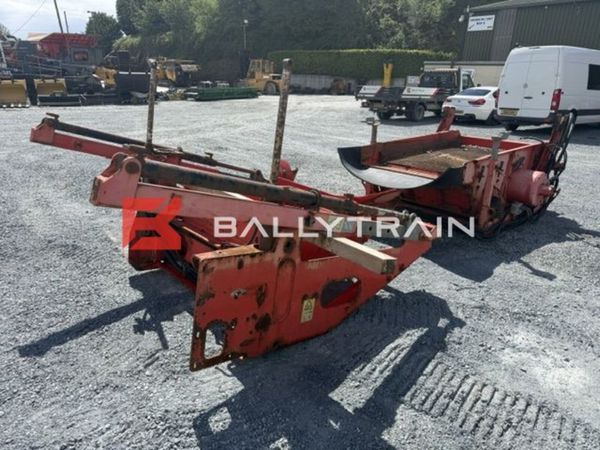

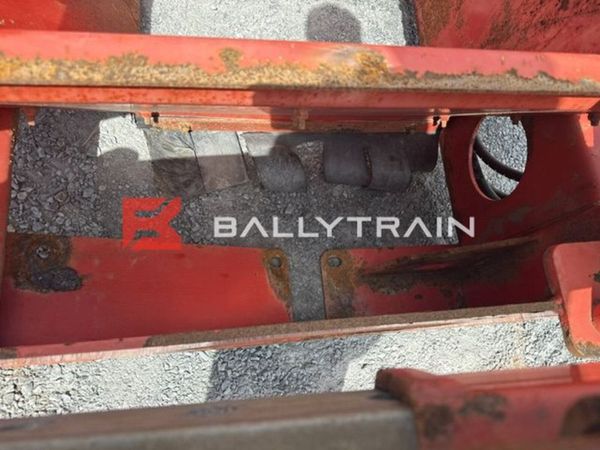

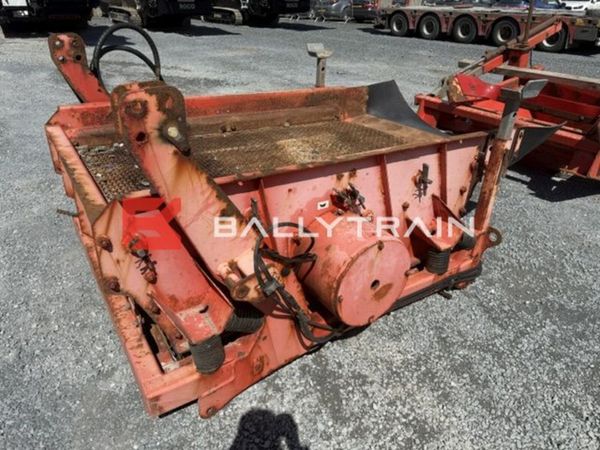

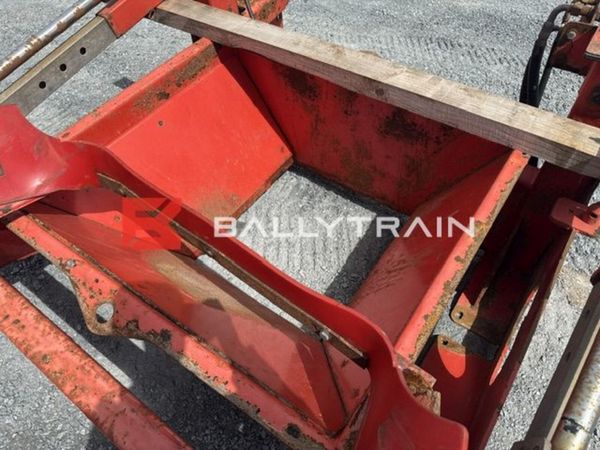

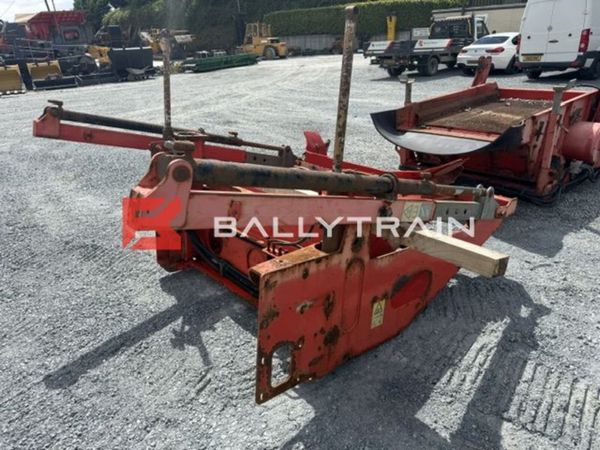

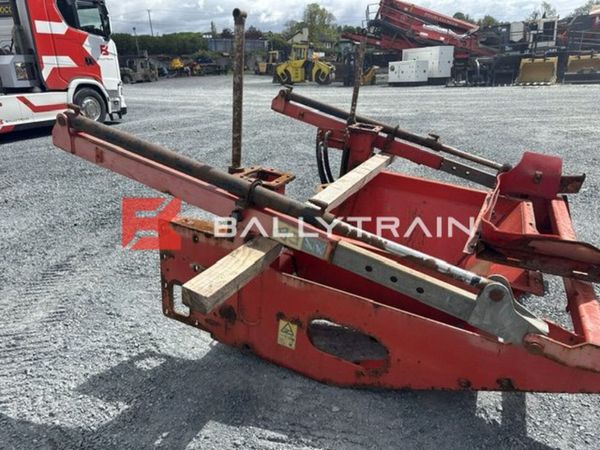

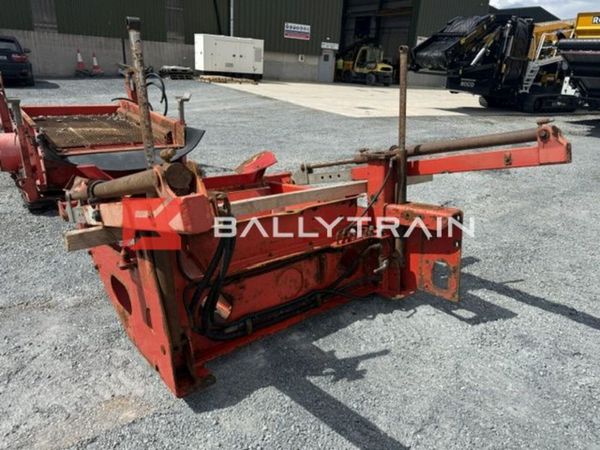

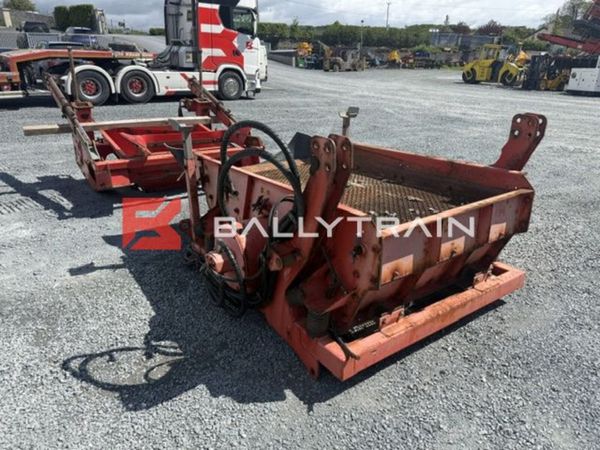

Finlay Pre-Screen for sale, Used Pre Screen, Year: 2016, 6ft long x 4ft wide (1.83m x 1.22m). Hydraulic Drive, Single deck pre-screen with 15mm mesh installed – side tensioned mesh. This Pre-Screen was removed from a 2016 working Finlay C-1540 mobile cone crusher. The frame/chute for this pre-screen to sit on comes with it as per images below. Suitable for feeding on large rock material before entering into cone/jaw chamber etc. Can be used for a wide range of other applications and will fit a wide range of machines both mobile and static i.e used as just stand along screen/screenbox. New mesh can be obtained and fitted at additional cost, comes as per images nothing more and nothing less. We also have the transfer belt/conveyor in stock to suit this Pre-Screen. Hydraulic drive prescreen, Finlay PreScreen to Suit Crusher, Finlay C-1530 Pre-Screen, Finlay Pre-Screen,

Worldwide Shipping options available, for keenest rates to get this pre-screen delivered to your local port or site please contact us.


PRE-SCREEN MODULE

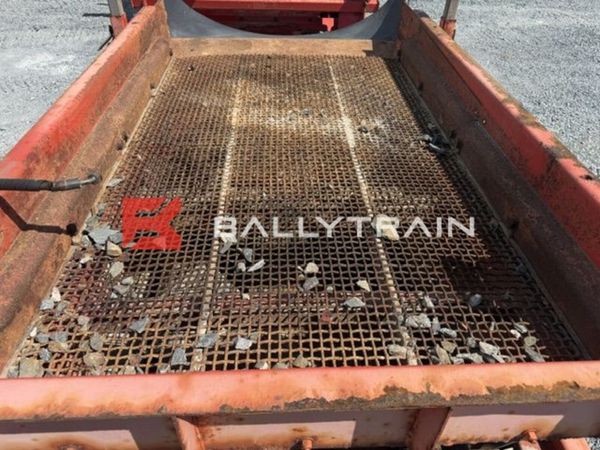

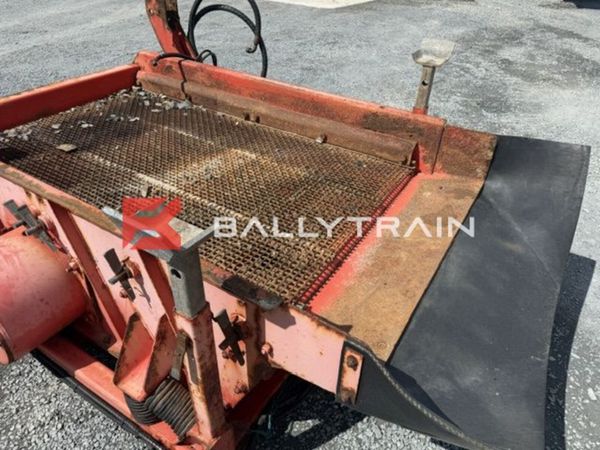

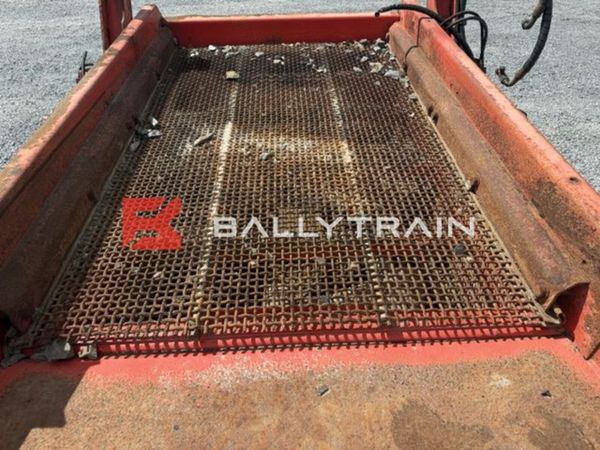

A) Screen
Top deck: 1.83m x 1.22m (6’ x 4’)
Total screening area: 2.23m² (24ft²)
Tensioning top deck: side

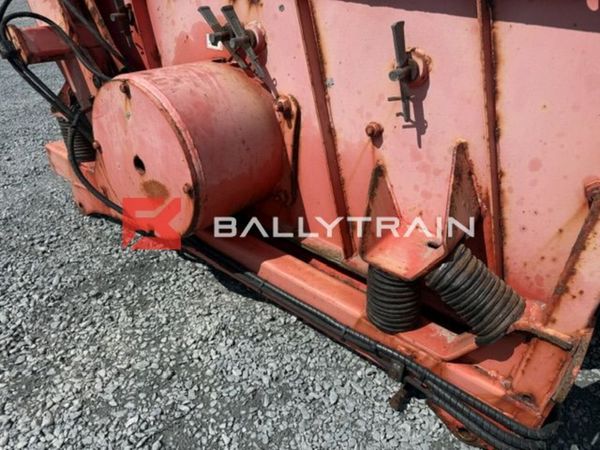

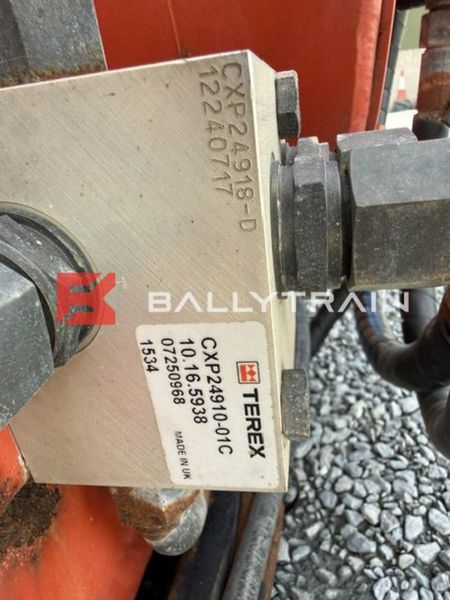

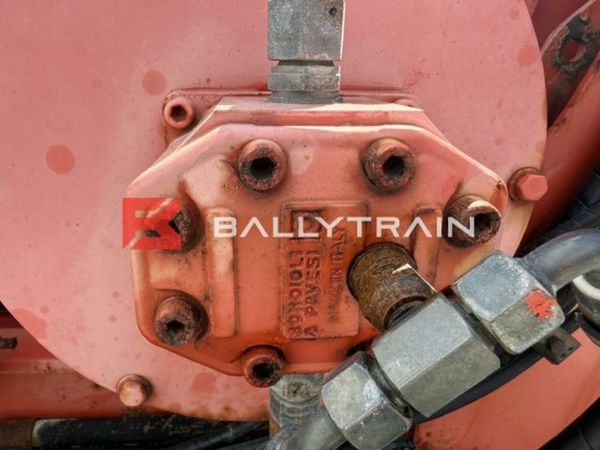

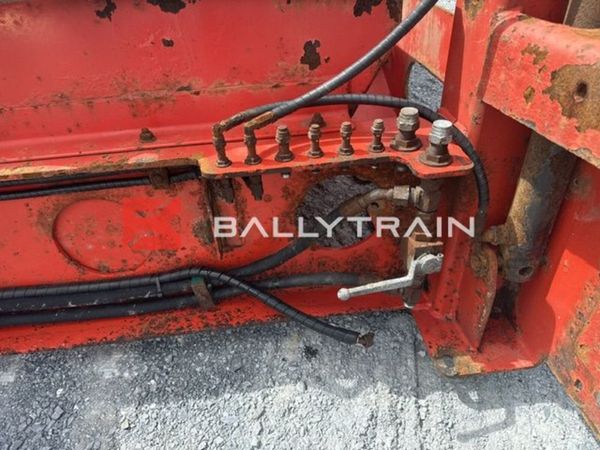

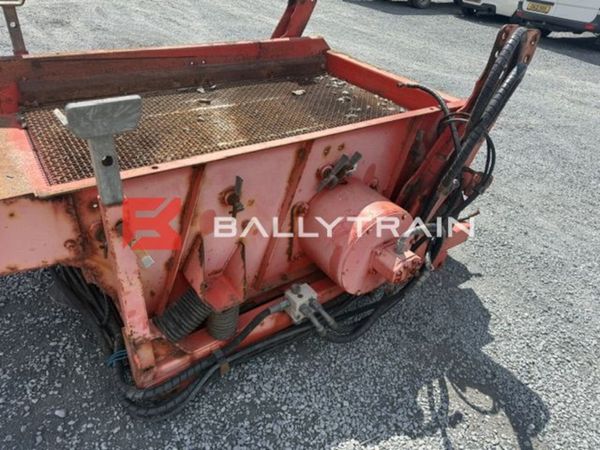

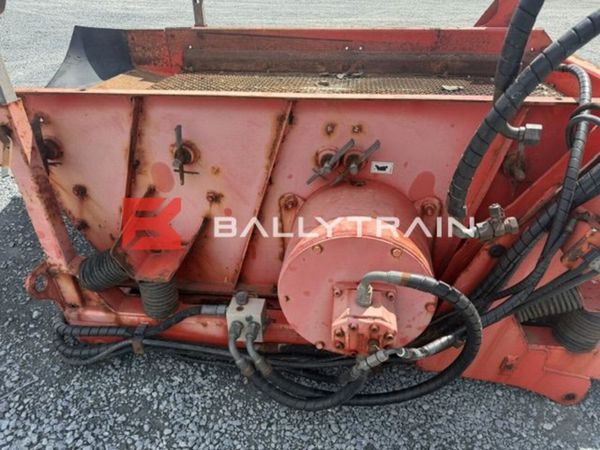

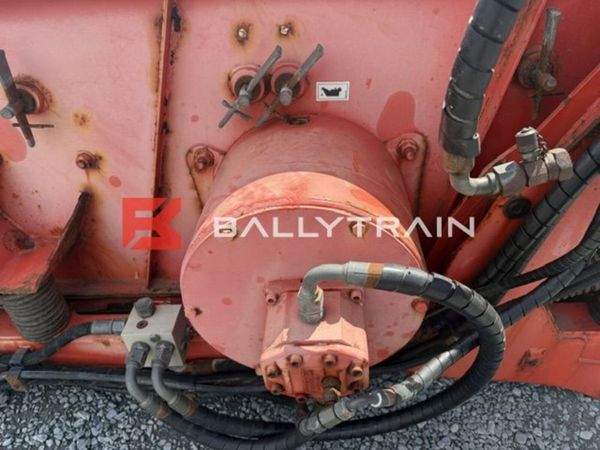

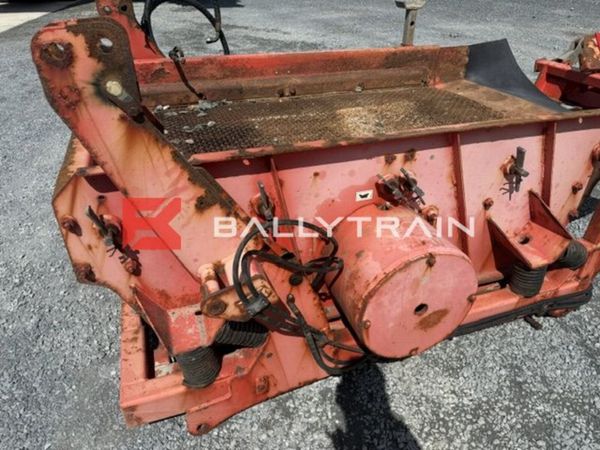

Drive: hydraulic with heavy duty bearing
Screen Angle: 25°
Screen Speed: 1200 rpm
The pre-screen module will maximise production through the cone by removing as much fine material as possible before it enters the cone
chamber. This will also reduce wear within the cone chamber.
